Applications

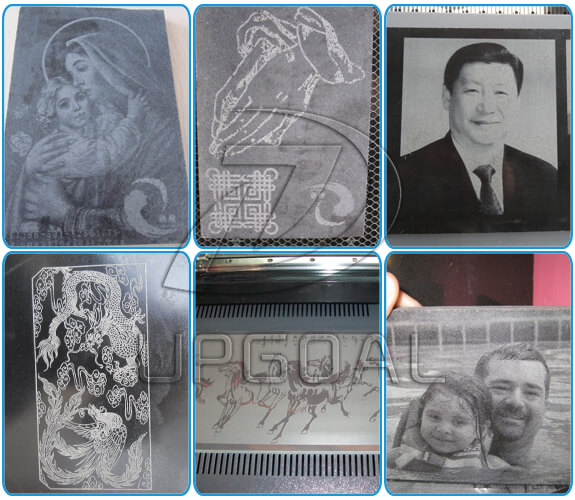

Application industry: Marble engraving, Advertisement, Gift Package, Model.

Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.

Features

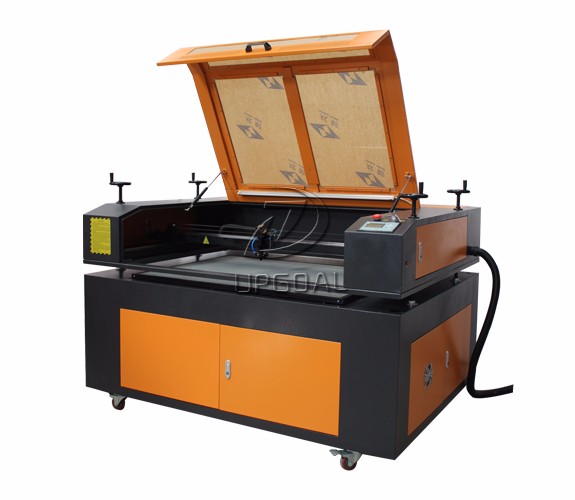

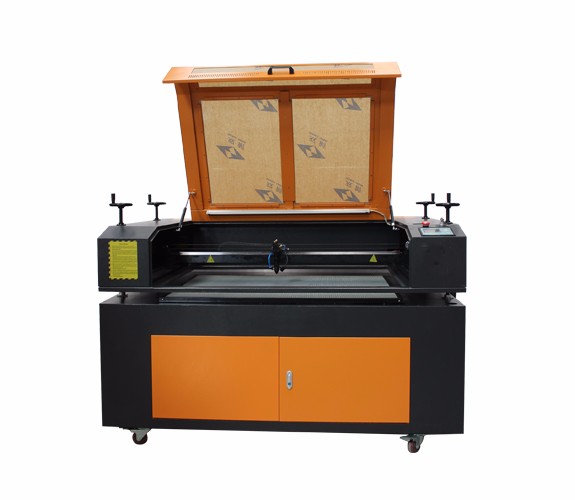

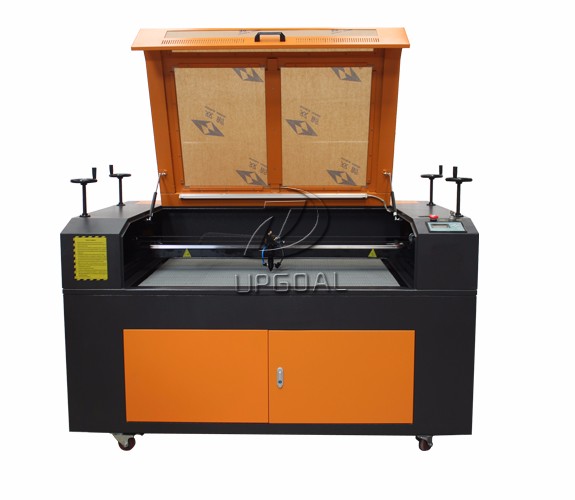

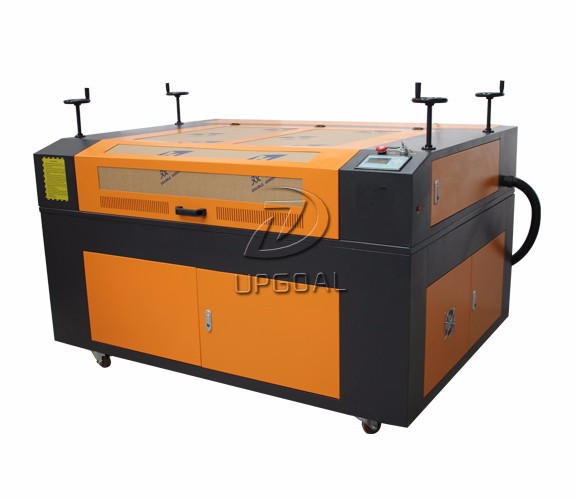

Separated Structure

Upper and lower separation design. The Upper parts can be taken down and set up onto the stone as solution for heavy stones while materials loading difficulties and platform load bearing is limited.

Manual Lifting Handle

Distance between the two parts can be adjusted which is Much more convenient for thicker materials processing

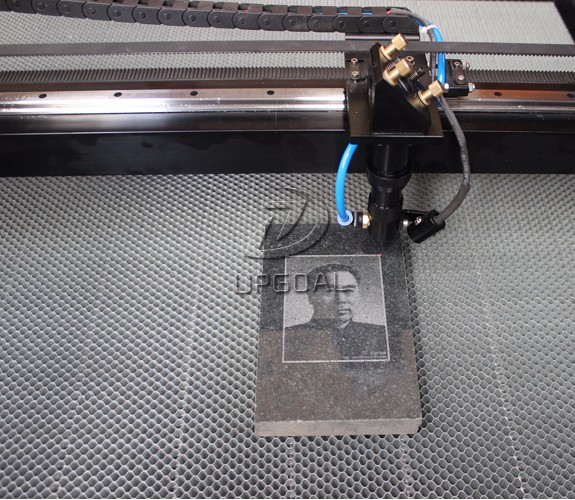

Laser Head

Newly desgin, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted famous Reci S2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Up-Down Table:Maxmum Loading 50kgs with 300mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high reflective ensure stable power transference.

Motion System

Imported High precison,low friction force and stand wear and tear linear square guide rails and blocks with 3M beltensured stable transimission, lower noise

Operation System

Advanced USB port Leetro DSP control system with large inner memory device and Fast curvilinear cutting and Optimized shortest path function, Greatly improved the working efficency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control programm with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continus working.
